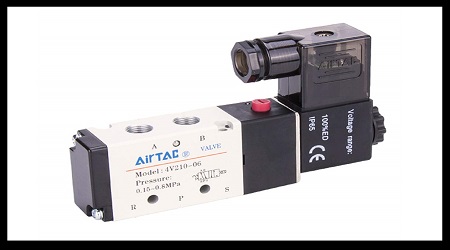

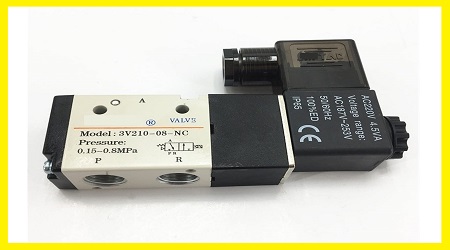

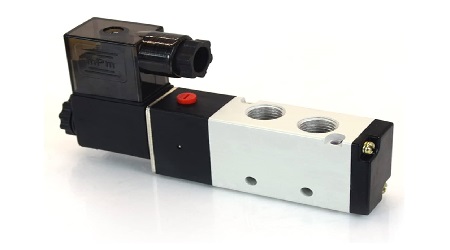

Electric Solenoid Valve 220volt AC 1/4″ Port Size

Description

• Product: Solenoid Valve;
• Model: 4V210-08
• Working Pressure: 1.5 ~ 8 kgf/cm2
• Operating Temperature: -5~50°C
• Power Consumption: 2.0W
• Voltage: 220V
• Voltage Range: AC187V-242V
• Excitation Time: 0.05 Second
• Position & Way Number: Two-position, Five-way
• Effective Sectional Area: 16mm2 (CV=0.89)
• Joint Pipe Bore: Inlet=Outlet=1/4”, Exhaust=1/8″
• Total Size: 11.8 x 6.6 x 2.1cm/4.6” x 2.6” x 0.8″ (L*W*H)
• Application: 2-position electric solenoid valves are used in a wide range of systems for on/off control of fluids;
