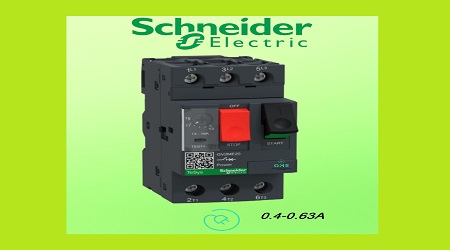

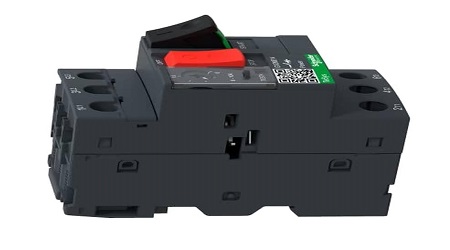

GV2ME04 Schneider 3-pole motor circuit breaker (MPCB)

Description

• Current Setting Range: 0.4 A to 0.63 A
• Number of Poles: 3-Pole (3P)
• Trip Unit Technology: Thermal-magnetic
• Breaking Capacity: 100 kA at 400 V AC
• Motor Power Rating: 0.18 kW at 400/415 V AC
• Mounting: 35mm DIN rail or panel mount
• Connection: Screw clamp terminals
• Dimensions: 45 x 89 x 78.5 mm (W x H x D)

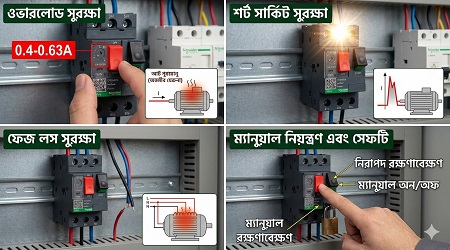

• Thermal Protection: Adjustable element to protect motors against overloads.
• Magnetic Protection: Fixed at 13×\(I_{n}\)(9.3 A) to protect against short circuits.
• Control: Manual start-stop control using built-in push buttons.
• Phase Failure Protection: Sensitive to phase imbalance/loss.
• The Schneider Electric GV2ME04 is a highly reliable, 3-pole motor circuit breaker (MPCB) from the TeSys GV2/Deca series. It features anadjustable thermal setting range of 0.4 to 0.63 A and provides comprehensive thermal-magnetic protection for small 3-phase motor applications up to 0.18 kW
